Laminated Air Filter Media Rolls G3 G4 - High-Performance Air Filtration from China Suppliers and Factory

Laminated air filter media rolls from our factory in China are engineered for superior filtration performance, perfect for environments with high levels of air pollution and contamination. Crafted from robust, unbreakable synthetic fibers and reinforced with a mesh layer, our filter media offers exceptional rigidity and structural integrity. As one of the leading suppliers in the industry, we provide reliable solutions for HVAC systems and various other applications that demand efficient air purification. Choose our high-quality products for optimal air quality and lasting performance

Product Detail

Main Features

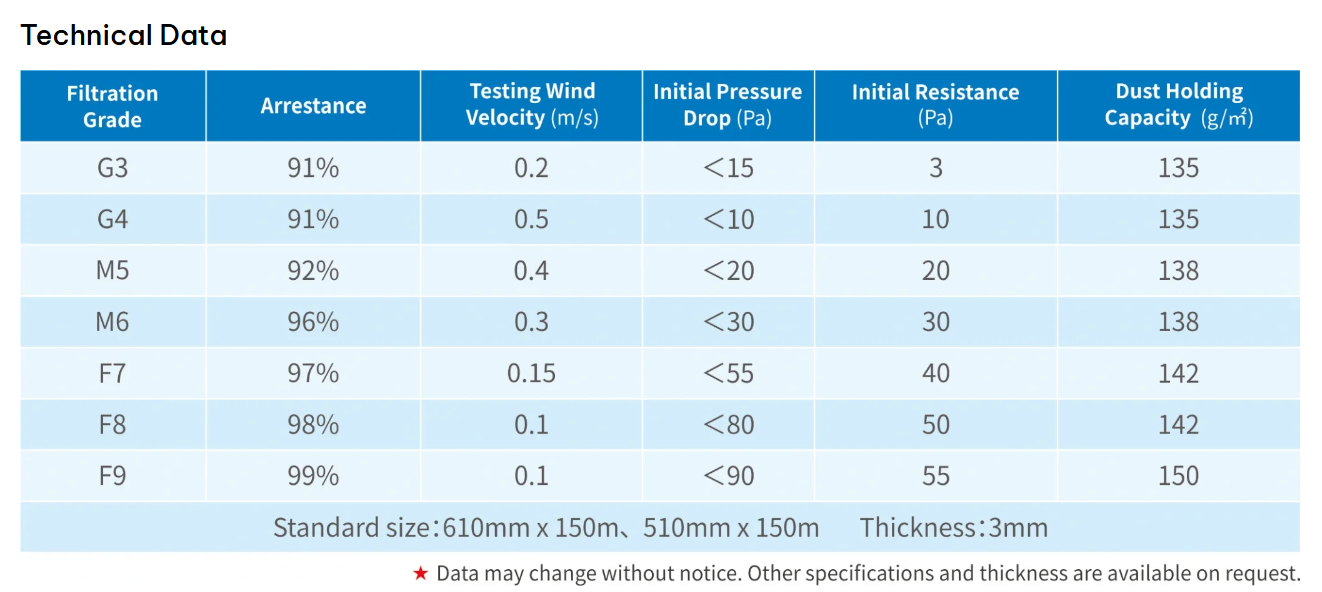

Filter Grade: Available in G3, G4, M5, M6, F7, F8 and F9, with corresponding MERV ratings from 5 to 14, providing a wide range of filtration options to meet specific air quality needs.

Frame Options: Available in cardboard, aluminum and galvanized steel, allowing flexibility in installation and application.

Low Air Pressure Drop: Designed to minimize air resistance, ensuring efficient airflow and reducing energy costs.

Cost-effective: Durable design extends filter life, reducing replacement frequency and overall maintenance costs.

Standard Sizes: Standard sizes are 610mm x 150m and 510mm x 150m with a thickness of 3mm.

Versatile: Suitable for use as a pre-filter or main filter, depending on the specific requirements of the environment.

Application

HVAC Systems: Ideal for commercial and industrial HVAC systems, where maintaining clean air is critical to the health and comfort of occupants.

Automotive and Aerospace Industry: Used in filtration systems in automotive and aerospace applications to ensure clean air quality and protect sensitive components.

Hospitals and Laboratories: Provides the necessary air purity for medical facilities and laboratories to prevent the spread of contaminants and protect patients and sensitive equipment.

Cleanroom Environment: Suitable for the electronics, pharmaceutical and biotechnology industries where stringent air quality standards are required.

Pre-filter or Main Filter: Can be used as a pre-filter to extend the life of finer filters in the system, or as a main filter depending on specific air quality requirements.

Cardboard Frame Thickness Options: Available in 22mm, 44mm and 90mm thicknesses to provide additional customization for a variety of applications.

In Conclusion

Laminated air filter media rolls are an excellent solution for maintaining a clean, healthy air environment in a variety of applications. Their rugged design, combined with a range of filtration grades and frame options, make them suitable for commercial, industrial, automotive, healthcare and cleanroom environments. By providing superior filtration efficiency and longer service life, these media rolls help improve air quality and reduce operating costs.

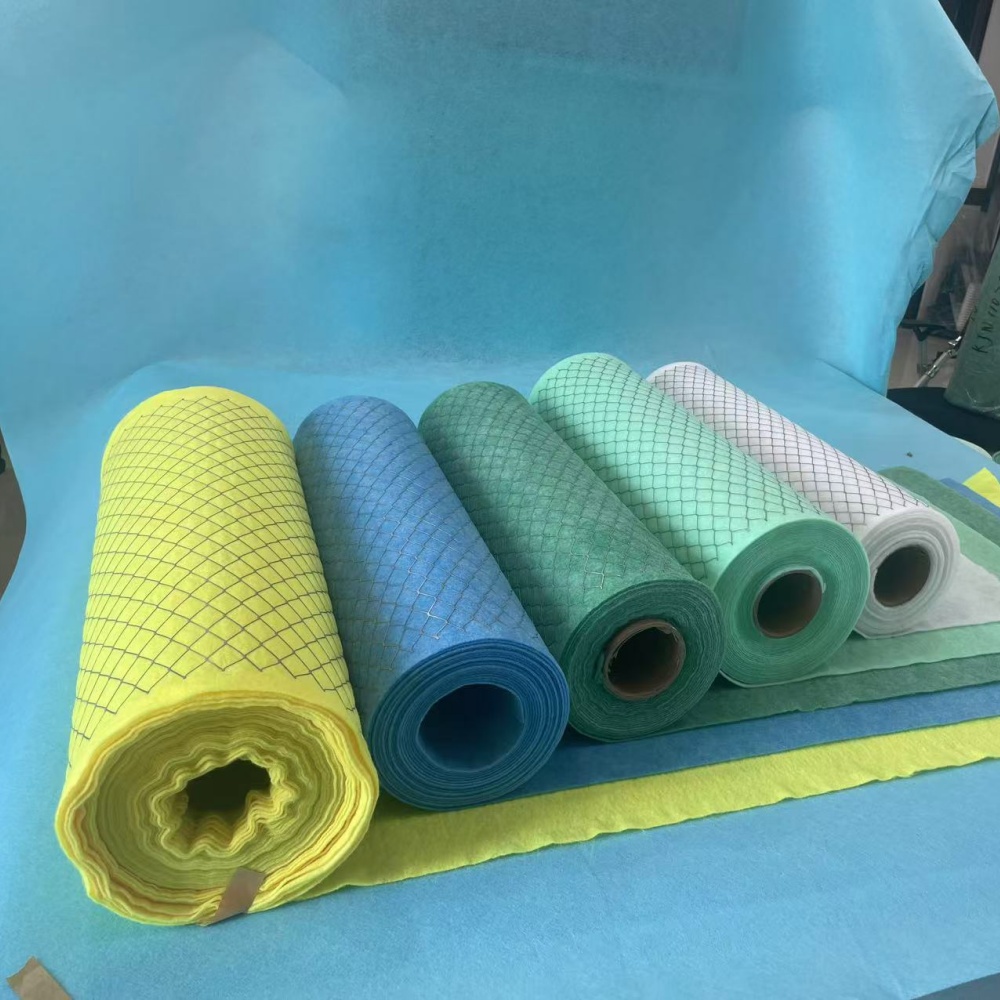

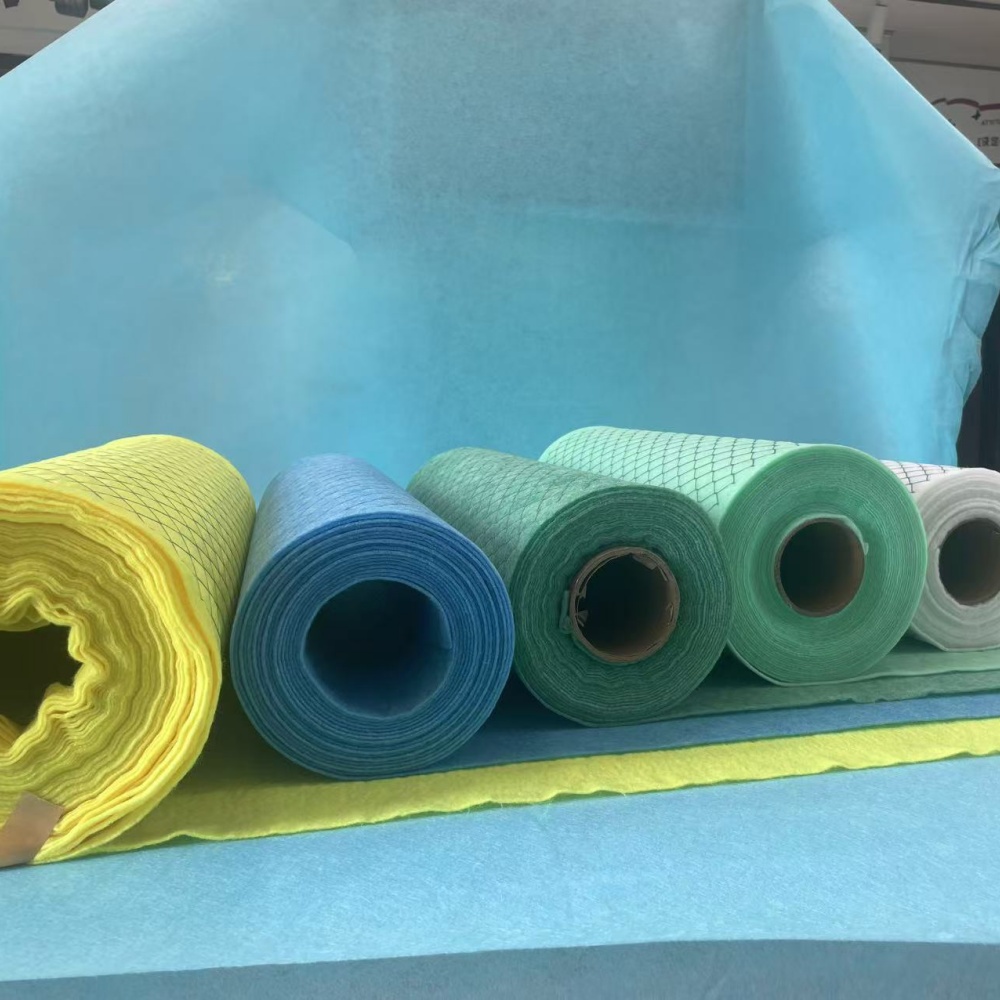

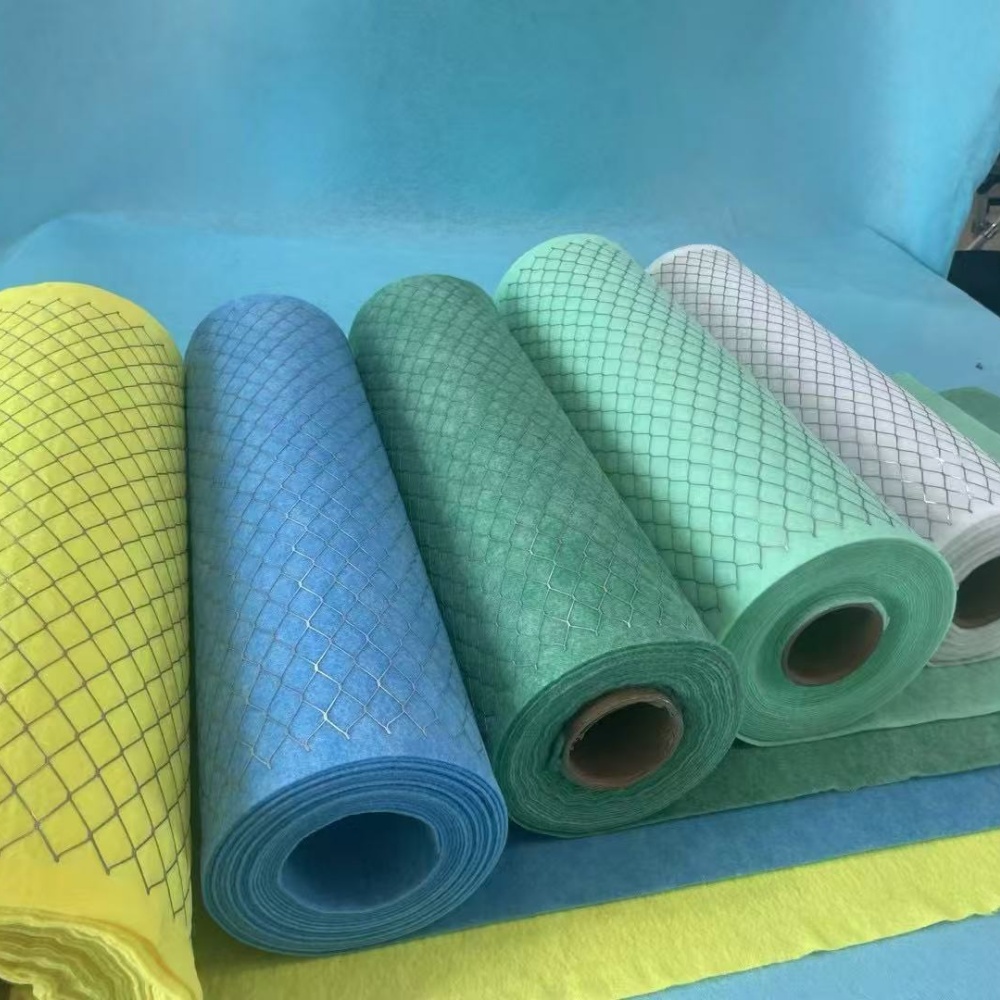

Product Display

Frequently Asked Questions

What filter grades are available for the laminated air filter media rolls?

They are available in G3, G4, M5, M6, F7, F8, and F9 grades, which correspond to MERV ratings from 5 to 14, providing a wide range of filtration options.

What frame materials can be used with these filters?

The filters can be installed with cardboard, aluminum, or galvanized steel frames, offering flexibility for various applications and installations.

Are there standard sizes available for the filter media rolls?

Yes, the standard sizes are 610mm x 150m and 510mm x 150m, both featuring a thickness of 3mm.

Can these filters be used in cleanroom environments?

Absolutely. They are highly suitable for cleanroom environments, including the electronics, pharmaceutical, and biotechnology industries where stringent air quality standards are required.

Do these filters function as pre-filters or main filters?

They are highly versatile and can be used as either a pre-filter (to extend the life of finer filters) or as a main filter, depending on your specific air quality requirements.

What are the thickness options for cardboard frames?

If you choose a cardboard frame, it is available in thicknesses of 22mm, 44mm, and 90mm to provide additional customization for different system requirements.
