High-Performance Paint Arrestor Filter from China Suppliers and Factory for Efficient Overspray Capture in Spray Booths
Main Features
The progressive, dense structure is designed to effectively trap and retain paint particulates from overspray.
Features large air permeability, ensuring a low initial pressure drop for efficient ventilation and energy savings.
Manufactured from long, interwoven fiberglass fibers, the media exhibits high burst resistance and maintains structural integrity without deformation.
The dense, graduated construction and large surface area contribute to an extended service life, reducing change-out frequency.
Designed to fit all standard filter frames and housings commonly used in industrial spray booths.
The fluffy inlet side provides depth-loading capacity, while the resilient material prevents compression damage during shipping and handling.
Applications
- Paint Spray Booths in the Automotive Industry
- Industrial Spray Booths for Manufacturing and Refinishing
- Power Generation Facilities (for specific air intake or exhaust scrubbing)
- General Industrial applications requiring overspray containment
Specification
| Model | Filtration Class | Thickness (mm) | Weight (g/㎡) | Dust holding Capacity (g/㎡) | Rated air velocity (m/s) | CMH | I.N.P (Pa) | F.N.P (Pa) | Capture rate |
|---|---|---|---|---|---|---|---|---|---|
| LY-PA-50 | G3 | 50 | 240 | ≥3500 | 2 | 7200 | 20 | 200 | 85% |
| LY-PA-60 | G3 | 60 | 260 | ≥3600 | 2 | 7200 | 23 | 200 | 90% |
| LY-PA-80 | G4 | 80 | 300 | ≥4000 | 1.75 | 6300 | 28 | 200 | 95% |
| LY-PA-100 | G4 | 100 | 350 | ≥5000 | 1.5 | 4500 | 40 | 200 | 98% |
| Roll sizes standard: 0.8*20m 1*20m 2*20m | |||||||||
| Note: other specifications can be customized according to requirements. | |||||||||

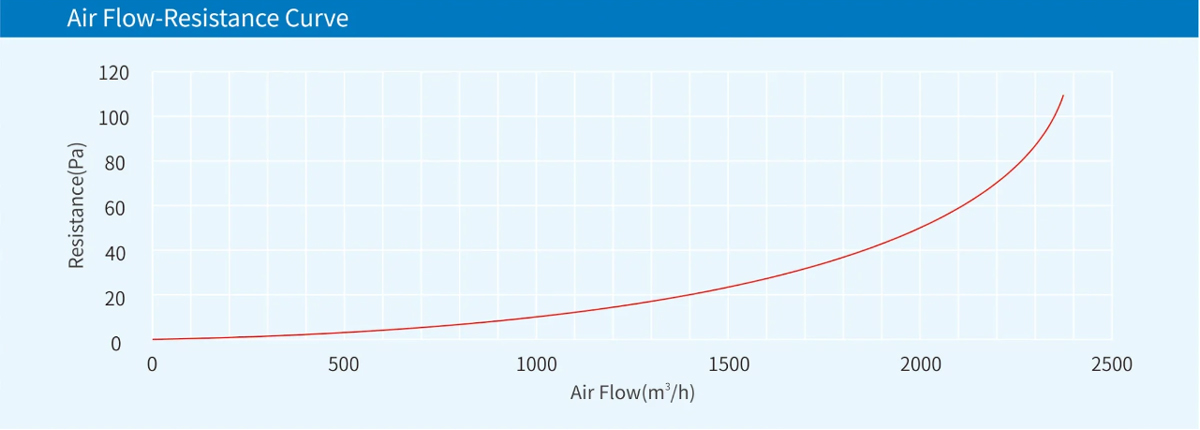

Technical Data
What is a Paint Arrestor?
Paint Arrestor is a vital component in spray booth ventilation systems. Its primary function is to protect the booth's exhaust system and the external environment by capturing liquid and solid particulates from paint overspray. The unique non-woven fiberglass construction acts as a depth filter, allowing air to pass through with minimal resistance while effectively arresting paint mist, thereby maintaining air quality and operational efficiency.
