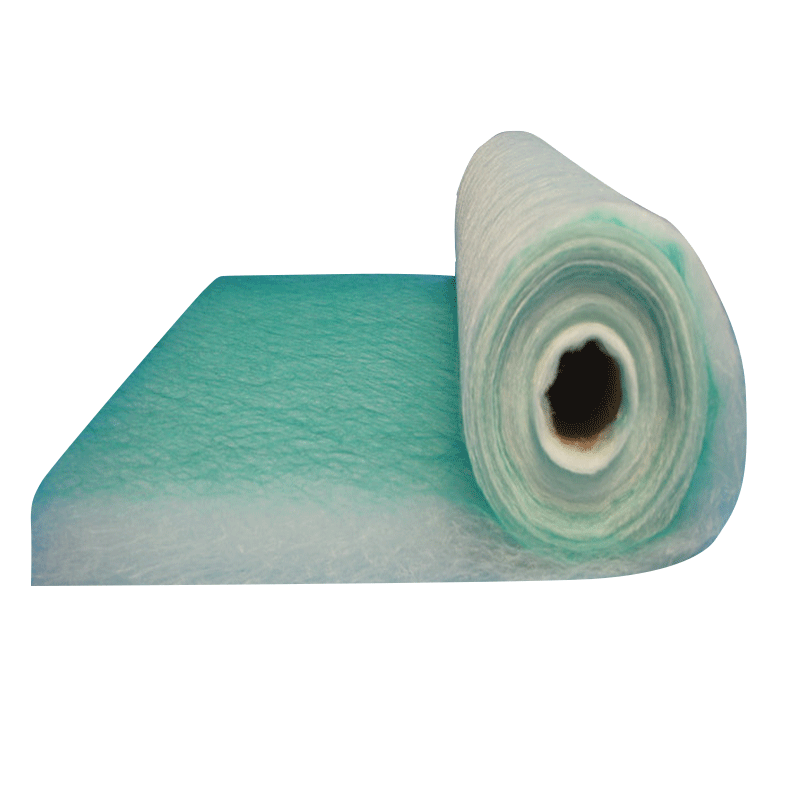

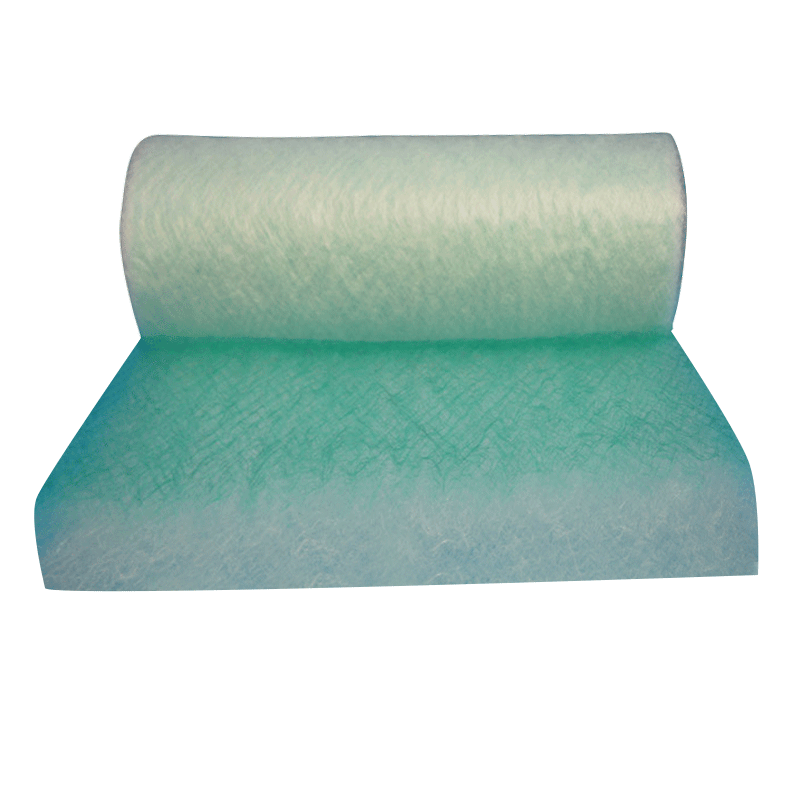

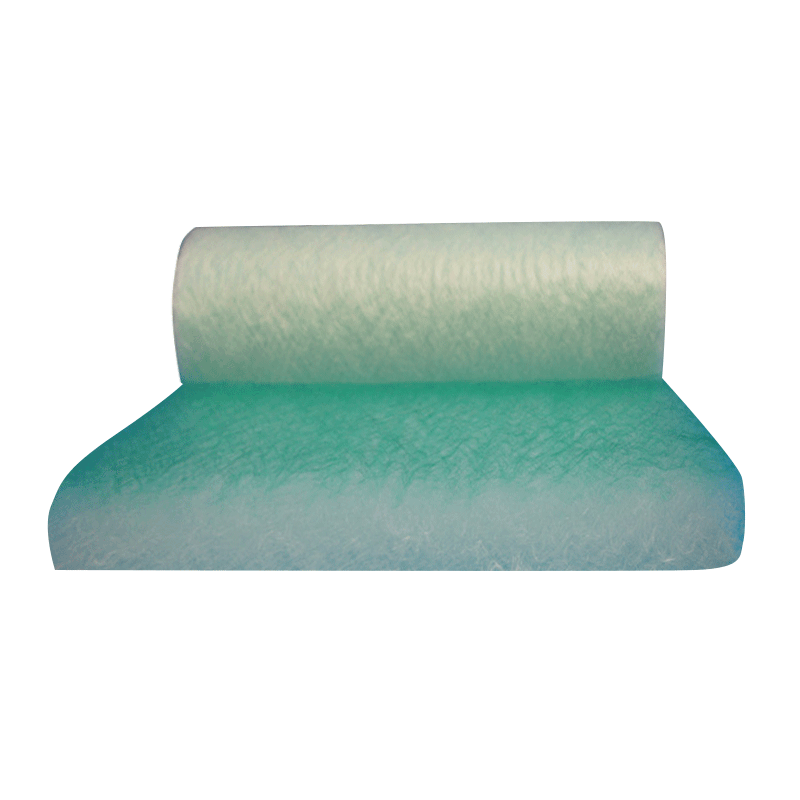

Fiberglass Paint Stop Filter Roll - High Efficiency Dust Filtration for Spray Coating by China Suppliers and Factory
Application
It is mainly used in the discharge filtration of paint mist or industrial oil mist from painting systems or pre-filtration of general ventilation.
Features
1. Step by step encryption of filter fibers and stratified filtration.
2. High dust holding and long service life.
3. air outlet surface with film treatment, stable structure, not easy to drop chips.
4. Strong absorptive power for paint mist and oil mist.
5. Excellent moisture-proof, elasticity, acid and alkali resistance, and high-temperature resistance.
Technical Parameters
| Main Material | Fiberglass fiber |
| Filtration class | G2, G3, G4(EN779)、EU3(EUROVENT)、MERV 5 6 |
| Final resistance | 200Pa(suggestion) |
| Average weight efficiency | PA-50/60≥90%、PA-75≥95%、PA-100≥98% |
| Flammability rating | F1(DIN 53438) B1(GBT 17591-2006) |
| Filter object | Paint mist, oil mist, dust particles |
| Color | Green-white / Blue-white / yellow-white / pink-white |
| Temperature resistance | 200°C |
| Temp. short peak | 250°C |
| Moisture resistance (relative humidity) | 100% |
About LJF
At Guangzhou LJF, we are committed to providing high-quality filtration solutions that meet our customers' needs. Fiberglass Anti-Paint Filter Rolls are a testament to our commitment to innovation and excellence in air filtration technology.
To learn more about our fiberglass paint barrier filter rolls or to place an order, contact us today. Let us help you achieve superior air quality and outstanding paint results in your paint booth operations!
Product Display
Frequently Asked Questions
What is the main application of the Fiberglass Paint Stop Filter Roll?
It is mainly used in the discharge filtration of paint mist or industrial oil mist from painting systems or pre-filtration of general ventilation.
What are the key features of this filter?
Key features include step-by-step encryption of filter fibers, high dust holding capacity, strong absorptive power for paint and oil mist, and a stable film-treated air outlet surface.
What temperatures can the fiberglass filter withstand?
The filter has a continuous temperature resistance of 200°C and can withstand short temperature peaks up to 250°C.
What is the moisture resistance of the filter?
The filter offers excellent moisture-proof capabilities, maintaining structural integrity up to 100% relative humidity.
What filtration classes are available?
Available filtration classes include G2, G3, G4 (EN779), EU3 (EUROVENT), and MERV 5-6.
What materials are used to make these filters?
The main material is high-quality fiberglass fiber, which provides excellent elasticity as well as acid and alkali resistance.
