China Suppliers Non-Woven Synthetic Pocket Filters for Air Quality – Reliable Factory Production
Main Features
Excellent filtration performance: These filters effectively capture dust and particles, ensuring the output air is clean and free of contamination. This is especially important in environments where air quality is critical, such as paint shops and industrial environments.
High dust holding capacity: Non-woven synthetic bag filters are able to hold large amounts of dust, thereby extending the life of the filter and reducing the frequency of replacement. This feature not only saves costs but also minimizes downtime associated with filter replacement.
Low Resistance: Designed to maintain low airflow resistance, these filters can improve the energy efficiency of ventilation and air conditioning systems. By allowing air to flow freely, they help reduce energy consumption, thereby reducing operating costs.
Good air tightness: The filter ensures minimal air leakage, thereby improving the overall efficiency of the filtration system. This tight seal is essential to maintain optimal performance and ensure that all air passes through the filter media.
Durable Construction: The high strength of the filter bags prevents breakage or detachment, ensuring long-term reliable performance. This durability is critical in harsh environments where filters are susceptible to wear.
Silicon-free design: These filters are suitable for applications where silicone contamination is a concern, such as painting and coating processes. This feature helps prevent defects in the finished product due to contact with silicone.
Standard Compliance: Non-woven synthetic bag filters meet EN779-2012 and ISO 16890-2016 test standards, ensuring high-quality filtration performance. Compliance with these standards ensures that the filters meet stringent industry requirements.
Multiple Applications: These filters have a wide range of uses and can effectively filter tiny particles in the air intake system of the paint spray booth, remove dust on the coating equipment, and perform secondary filtration in high-quality coating systems and baking equipment.
Customization Options: Available in a variety of formats including mats or mats with frames, these filters can be customized to specific installation requirements. This customization ensures that users can find the right product for their system.
Specific applications
Secondary Filtration: These filters are ideal for use in secondary or back-end filtration systems in a variety of ventilation and air conditioning units to enhance the overall filtration process.
Dust Filtration: Effectively removes dust from paint shops and equipment, ensuring a cleaner working environment and reducing the risk of contamination.
Improved Air Quality: By capturing particulate matter and reducing airborne pollutants, these filters significantly improve air quality in industrial environments, contributing to a healthier workplace.
In summary, non-woven synthetic bag filters are an essential component in maintaining air quality and efficiency in a variety of industrial applications. Their reliable filtration capabilities, coupled with durability and energy-efficient design, make them a valuable investment for businesses looking to improve operational performance and create a healthier work environment. By using these filters, companies can ensure cleaner air, reduce maintenance costs, and comply with industry standards, ultimately improving productivity and safety.
Specification
| Filtration Grade | Dimensions (mm)(W*H*D) | No. Of bags | Filtration Area(㎡) | Rated Air Volume | I.N.P(Pa) | F.N.P(Pa) Recommended |
|---|---|---|---|---|---|---|
| 35%(G4) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
40 45 |
350 |
| 45%(M5) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
45 50 |
350 |
| 65%(M6) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
50 65 |
400 |
| 85%(M7) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
65 75 |
400 |
| 90%(M8) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
75 85 |
400 |
| 95%(M9) | 287*595*600 595*595*600 |
4 8 |
2.85 5.71 |
1800 3600 |
85 95 |
400 |
| Note: Special Size Available Upon Request. | ||||||

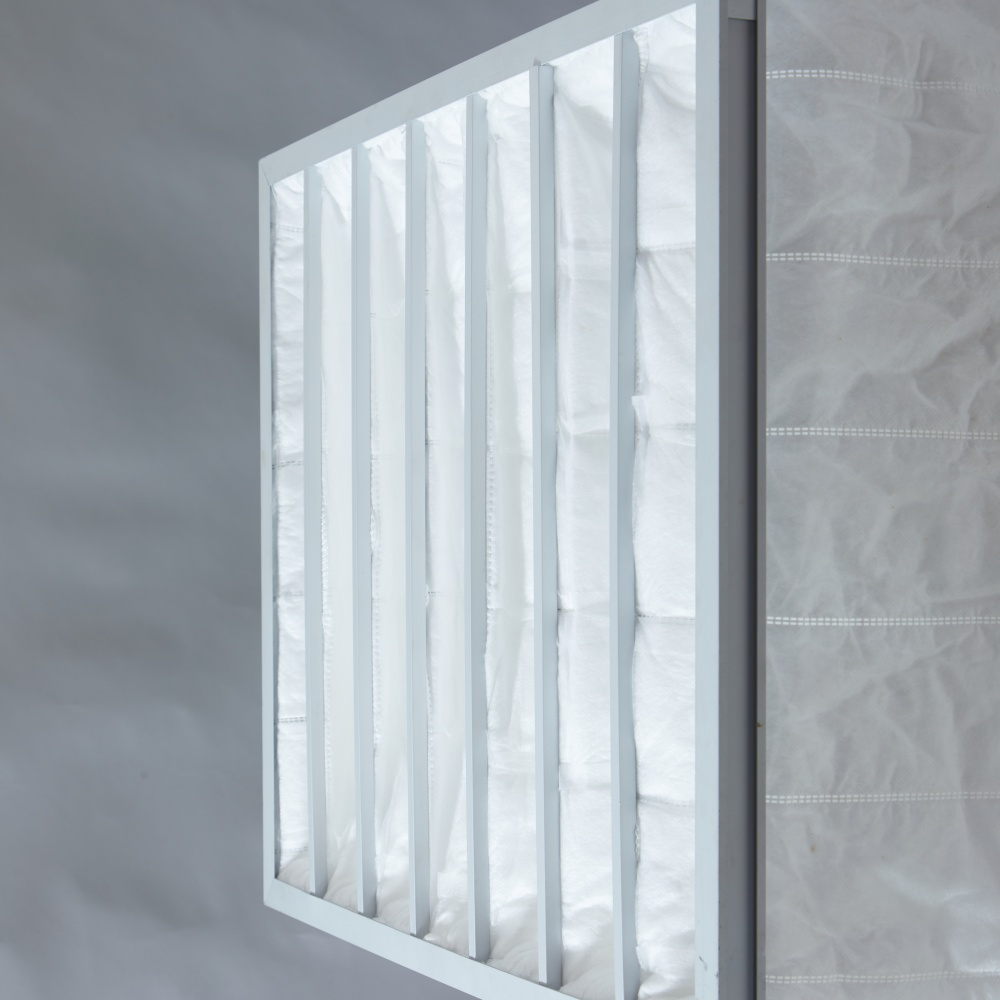

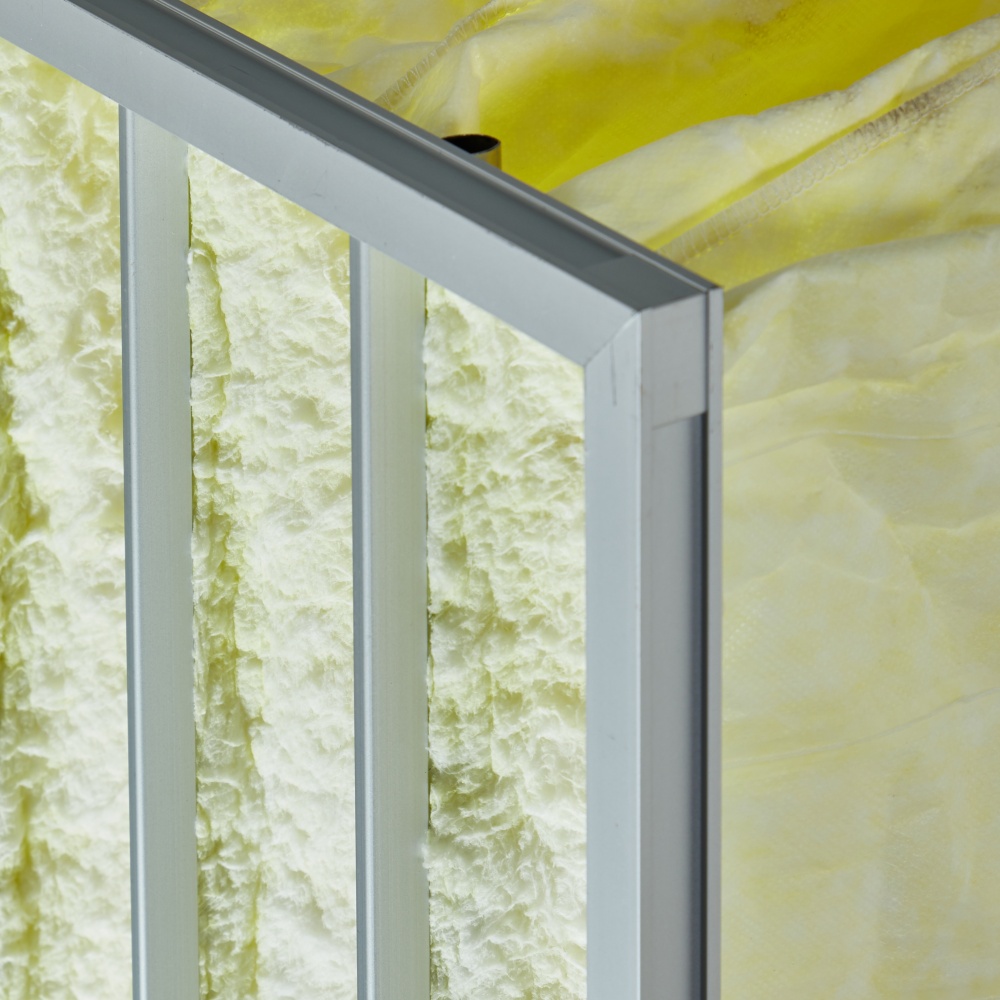

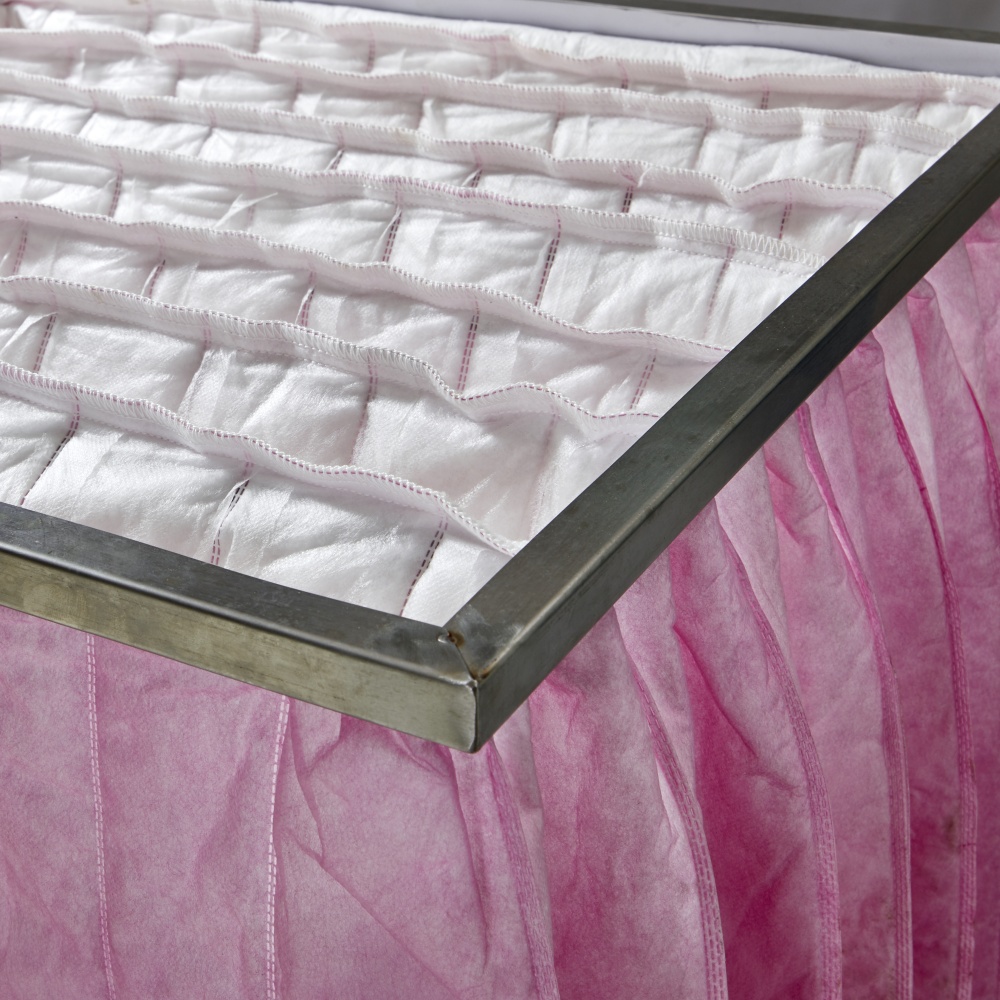

Product Display
Frequently Asked Questions
What are the main advantages of using non-woven synthetic bag filters?
They offer excellent filtration performance, high dust holding capacity, low airflow resistance, and are designed to be highly durable and air-tight. This results in reduced maintenance frequency and lower operating costs.
Are these filters suitable for painting and coating environments?
Yes. They feature a silicon-free design, which is essential for painting and coating processes to prevent defects in the finished products that could be caused by silicone contamination.
Do the filters comply with international testing standards?
Absolutely. Our non-woven synthetic bag filters strictly meet the EN779-2012 and ISO 16890-2016 test standards, ensuring top-tier, reliable filtration performance.
How do these filters help in saving energy?
They are engineered to maintain low airflow resistance. By allowing air to flow more freely, they reduce the workload and energy consumption of ventilation and air conditioning systems.
Can I request custom sizes for the filters?
Yes, customization options are available. The filters can be provided in various formats, such as mats or mats with frames, and special sizes can be manufactured upon request to fit your specific installation requirements.
