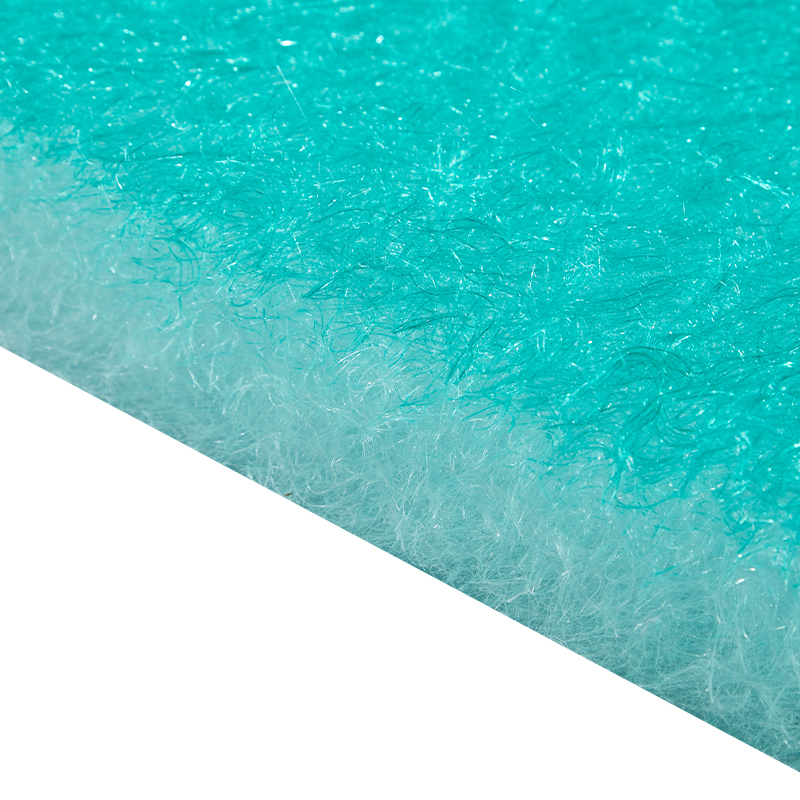

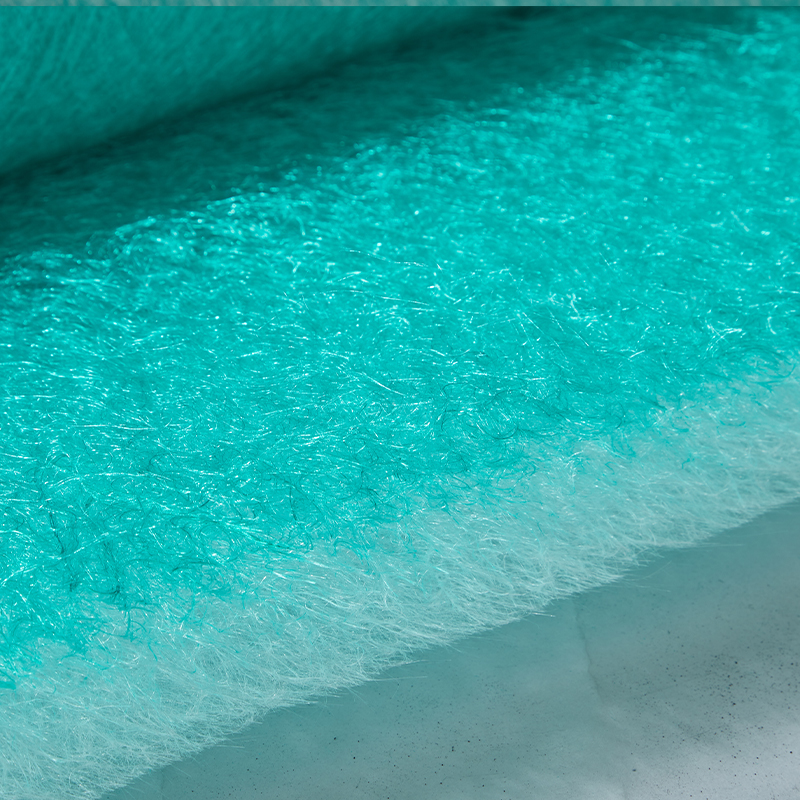

China Spray Booth Filter Media Roll - High-Quality Suppliers & Factory for Effective Paint Mist Filtration
Main Features
1
Filtration Grade
Filter media is available in a variety of filtration grades, including G3, MERV 5, and MERV 6. These grades ensure effective capture of airborne particles, providing a reliable solution for maintaining the air quality in the paint booth.
2
Filter Material
The filter media is made of filament glass fibers that are thermally bonded and internally connected to form a robust structure. This construction not only increases durability but also ensures that the filter can withstand the rigors of continuous use in demanding environments.
3
High-depth Filtration
The progressive density design of the filter material follows the direction of airflow, which can achieve high-depth filtration. This feature enables the filter to capture particles of various sizes, from larger paint droplets to fine dust, ensuring comprehensive air purification.
4
Resilient Structure
The filter media is fluffy and resilient, allowing it to recover quickly after compression. This feature is critical to maintaining consistent performance as it ensures paint mist and dust are effectively captured without significantly reducing efficiency.
5
High Dust Holding Capacity
The multi-layer structure of the filter media provides excellent dust holding capacity. This feature prolongs the life of the filter and reduces the frequency of replacement, saving costs and reducing maintenance downtime.
6
Corrosion Resistant
This filter media can withstand high concentrations of solvents, acids, alkalis and high temperatures, making it an ideal choice for paint spray booths. Its corrosion resistance ensures longevity and reliability, even in harsh conditions.
7
Customizable Options
Paint booth filter rolls are available in a variety of sizes and thicknesses, and can be customized to suit different spray booths or room settings. This flexibility ensures that users can find the filter media that best suits their specific application, thereby improving overall filtration efficiency.
Application
Paint booth filter rolls are essential components for maintaining the air quality in the paint booth. They effectively capture harmful particles, improving the working environment and helping to ensure personnel safety. By filtering out paint mist and dust, the filter media helps prevent contamination of the finished product, ensuring high-quality results in the painting and coating process.
In summary, the Paint Booth Filter Roll is a versatile and reliable solution for industrial applications. Its advanced design, high dust holding capacity, and customizable options make it an ideal choice for businesses looking to improve paint booth air quality and operational efficiency. By investing in this filter media, companies can ensure a cleaner, safer work environment while maintaining compliance with industry air quality standards.
Specification
| Model | Outside size W*H*D(mm) |
Rated air flow(m³/h) | I.N.P (Pa) |
Filter efficiency | Material | |||
|---|---|---|---|---|---|---|---|---|
| Frame | Filters material | Partition material | Sealant | |||||
| LY-D-H | 320*320*220 | 400 | ≤200pa | ≥99.99%@0.3μm | Plank Aluminum alloy Galvanized sheet Stainless sheet |
Fiberglass filter paper | Aluminum foil Veneer paper |
Polyurethane rubber |
| 484*484*220 | 1000 | |||||||
| 610*610*150 | 1000 | |||||||
| 820*600*150 | 1200 | |||||||
| 630*630*220 | 1500 | |||||||
| 968*484*220 | 2000 | |||||||
| 945*630*220 | 2200 | |||||||
| 1260*630*220 | 3000 | |||||||
| Note: Special Size Available Upon Request. | ||||||||
Product Display
Frequently Asked Questions
What filtration grades are available for the filter media?
The filter media is available in a variety of filtration grades, including G3, MERV 5, and MERV 6, ensuring effective capture of airborne particles in the paint booth.
What material is used to construct the filter media?
The filter media is made of filament glass fibers that are thermally bonded and internally connected to form a robust, durable structure capable of withstanding continuous use.
How does the filter achieve high-depth filtration?
It utilizes a progressive density design that follows the direction of airflow. This allows the filter to capture particles of various sizes, from larger paint droplets to fine dust.
Why is the resilient structure of the filter important?
The fluffy and resilient structure allows the filter media to recover quickly after compression, ensuring consistent performance and effective capture of paint mist and dust without reducing efficiency.
Can the filter withstand harsh chemicals and high temperatures?
Yes, the filter media is highly corrosion-resistant and can withstand high concentrations of solvents, acids, alkalis, and high temperatures, making it ideal for harsh conditions.
Are custom sizes available for different spray booths?
Absolutely. Paint booth filter rolls are available in a variety of sizes and thicknesses, and can be fully customized to suit different spray booths or specific room settings.
