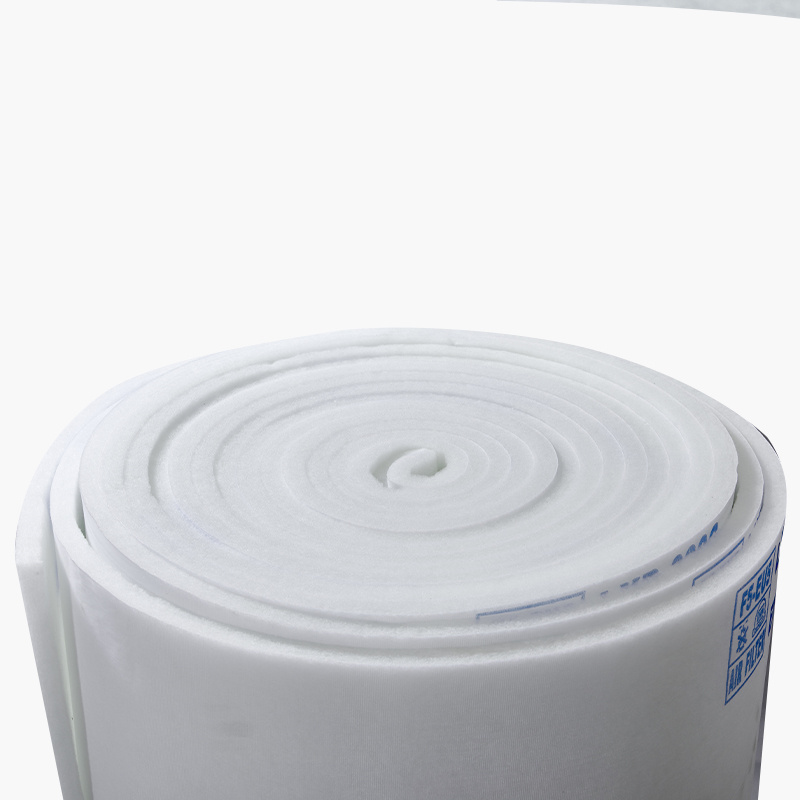

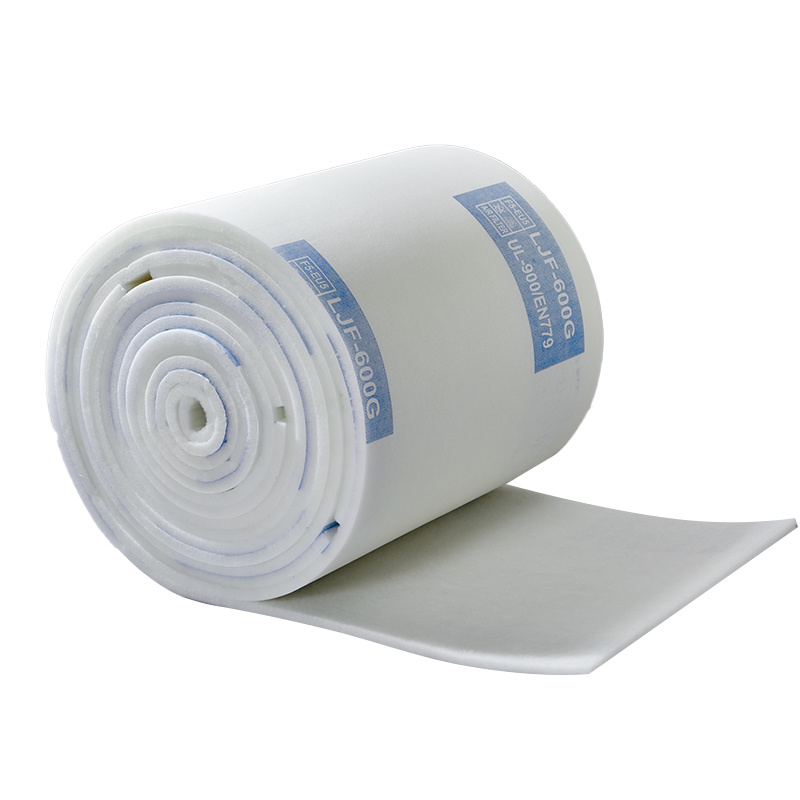

600G Spray Booth Ceiling Filter
Product Overview

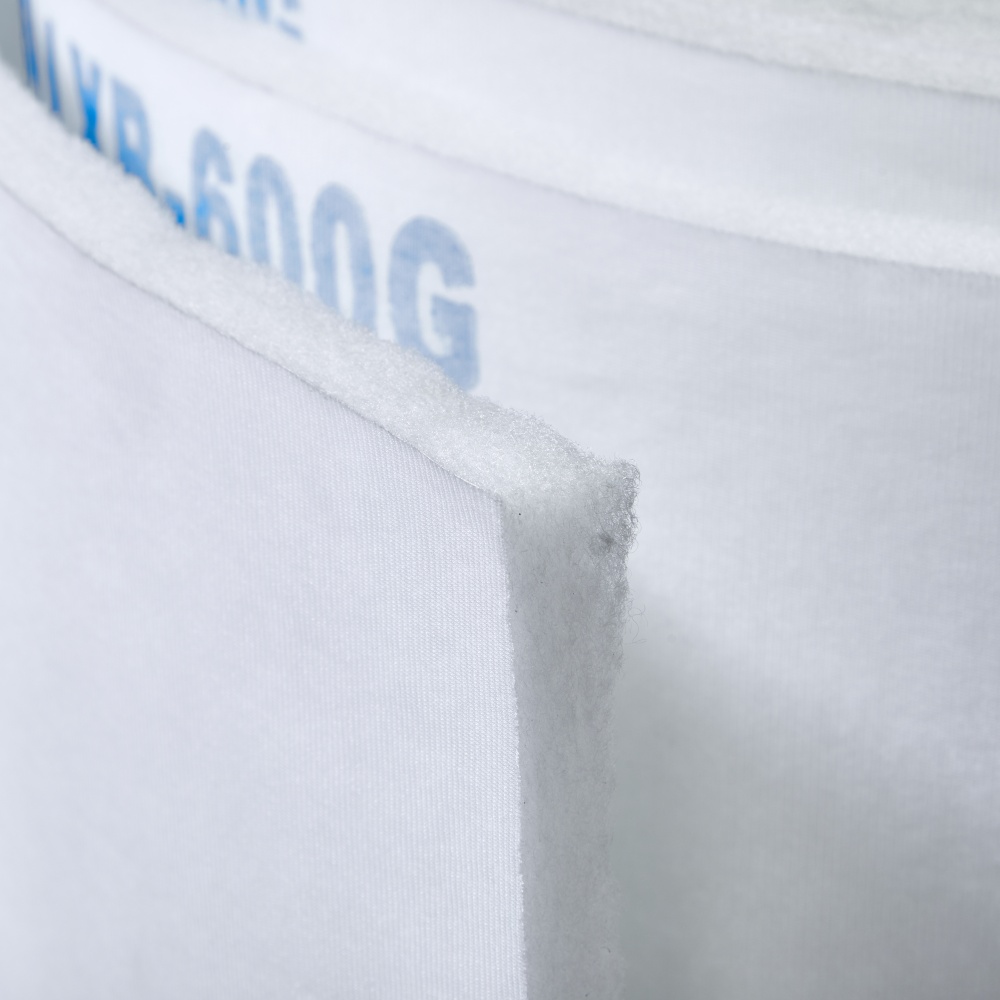

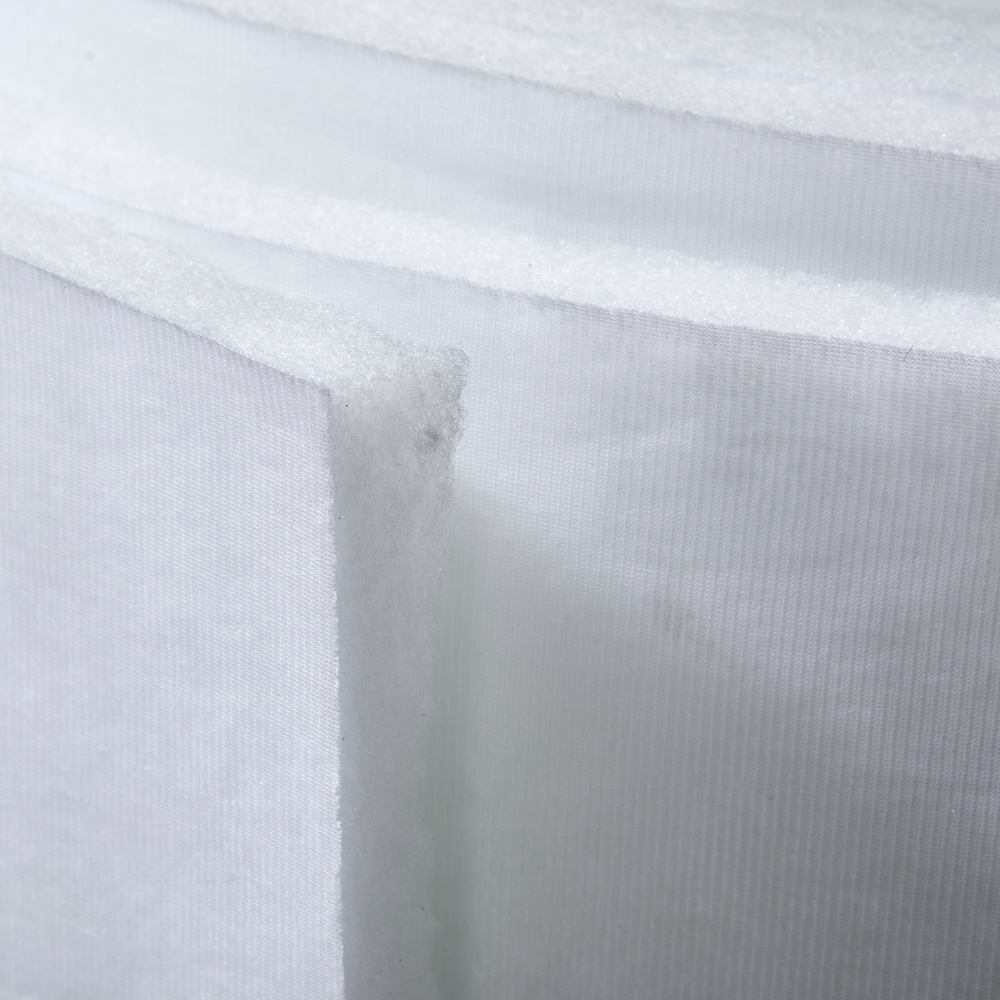

The 600G F5 paint booth ceiling filter from Guangzhou LJF is specifically calibrated for the dynamic demands of automotive collision repair centers and professional body shop painting bays. This 22 mm synthetic ceiling media provides an ideal balance of filtration efficiency and airflow permeability, keeping paint booth ventilation consistent during complex refinishing jobs while capturing dust, lint, and airborne contaminants before they reach freshly painted surfaces.

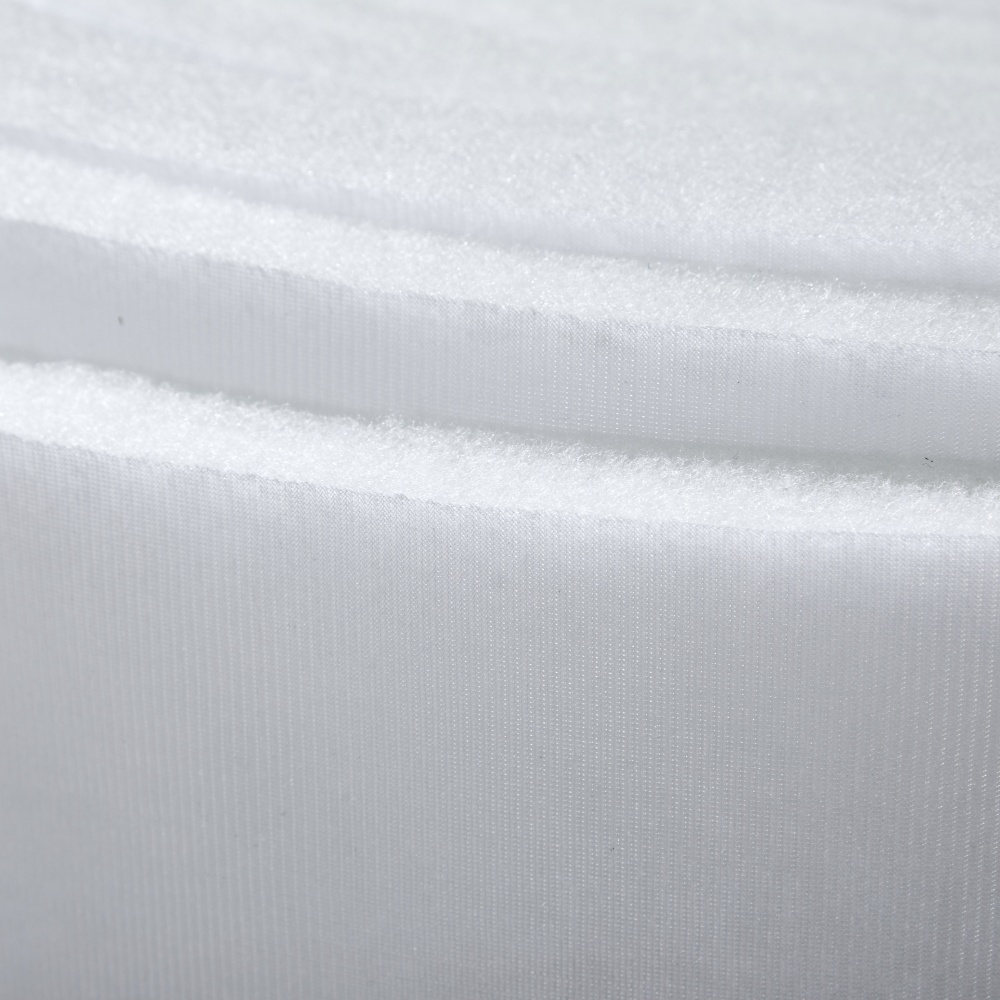

Using a full-immersion 3D resin bonding process, the media locks fine dust particles deep within the fiber matrix, preventing fiber migration and surface defects on newly painted vehicles. The reinforced non-woven backing keeps the filter stable under the variable pressures of professional painting operations, delivering a uniform, laminar airflow for a flawless high-gloss finish.
Meeting UL 900 Class 2 and DIN 53438 F-1 flame-retardant standards, this 600G ceiling media is built for high-throughput automotive body shops, furniture coating lines, and industrial paint facilities. Supplied in standard rolls with flexible OEM/ODM manufacturing to match your exact dimension and efficiency requirements.
Key Features
● Full-immersion 3D resin bonding:
adhesive matrix deeply embedded in the fiber, locking fine dust and preventing fiber migration
● adhesive matrix deeply embedded in the fiber, locking fine dust and preventing fiber migration
the proven balance of F5 filtration efficiency and airflow permeability

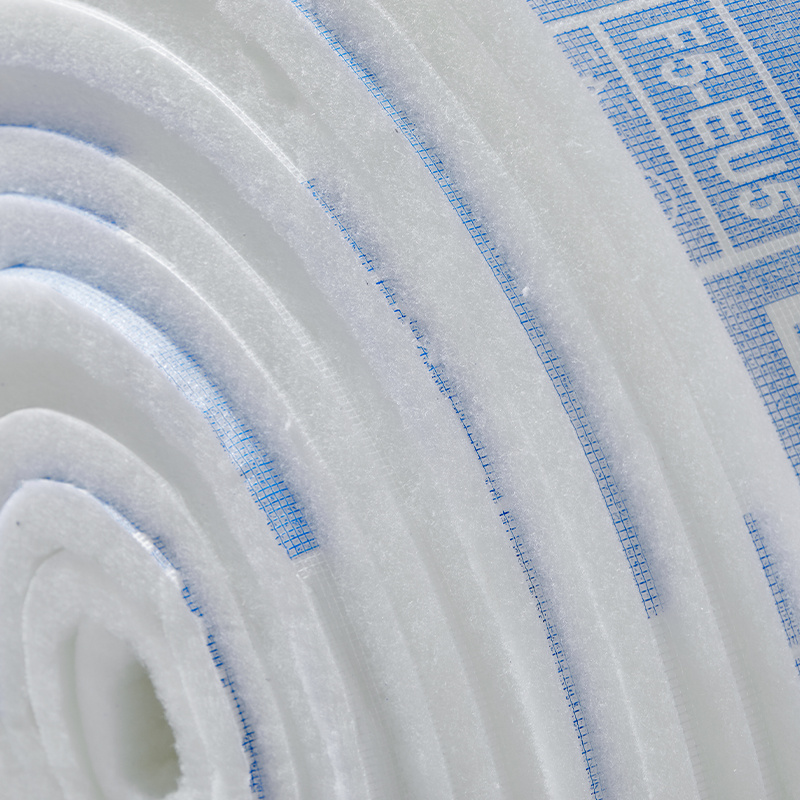

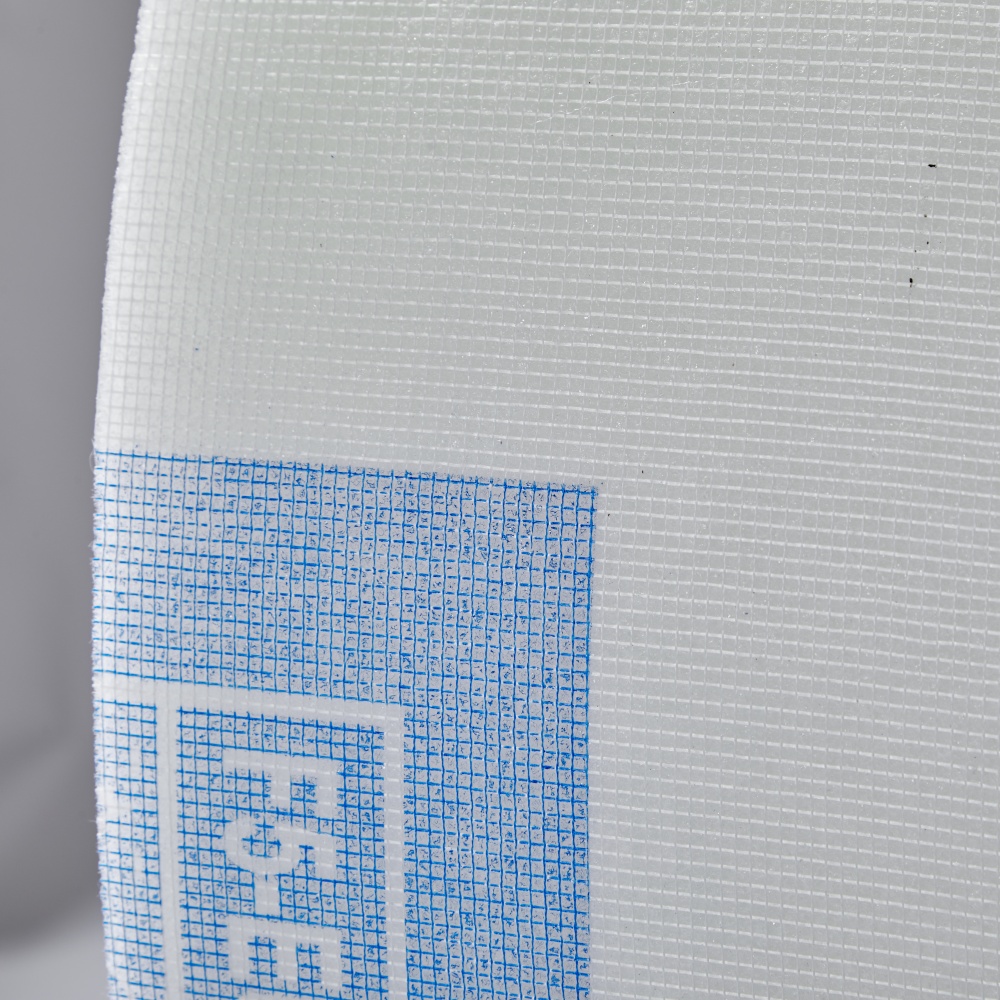

● Reinforced non-woven backing
maintains filter form under variable booth pressures for stable performance
● Uniform laminar airflow
prevents localized turbulence for a flawless, high-gloss paint finish
● Flame-retardant certified
UL 900 Class 2 and DIN 53438 F-1 compliant for regulated spray booth environments
● OEM/ODM customization
custom dimensions, gram weights, and branding with free test samples for bulk orders

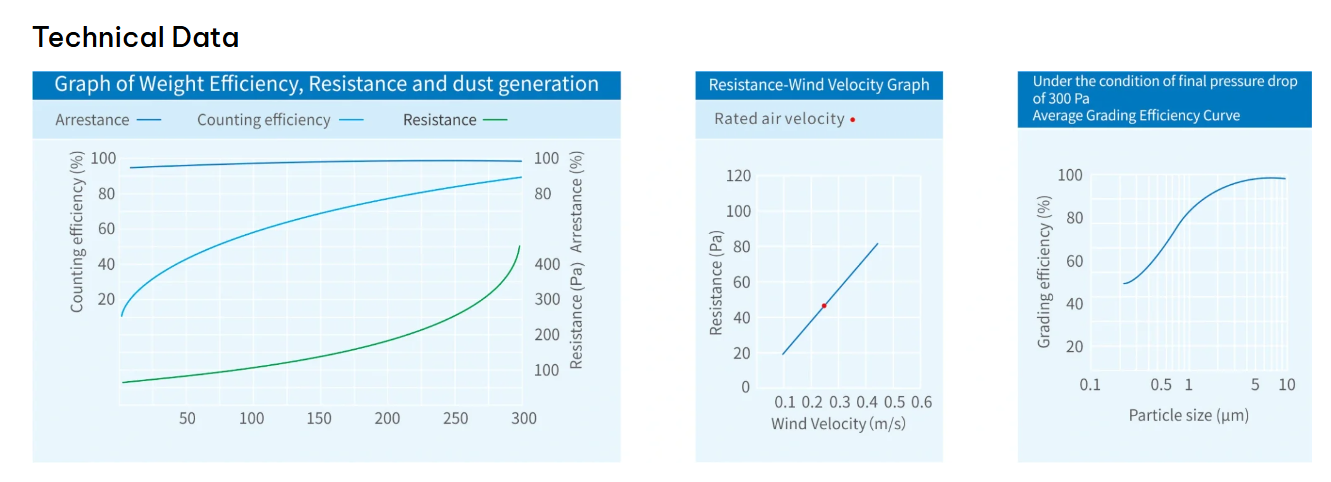

Specification
|
Model |
Filtration Class |
Average capture rate |
Thickness (mm) |
Weight(g/㎡)
|
Dust holding Capacity (g/㎡) |
Ratedair velocity(m/s) |
I.N.P (Pa) |
F.N.P(Pa) |
Scrim/Glue |
LJF-600G |
F5 M5 |
99% |
22±2 |
600 |
450 |
0.25 |
45 |
450 |
Full glue |
LJF-560G |
F5 M5 |
99% |
22±2 |
500 |
400 |
0.25 |
40 |
400 |
Full glue |
LJF-460G |
F5 M5 |
97% |
22±2 |
460 |
370 |
0.25 |
35 |
400 |
Surface glue |
LJF-400G |
F5 M5 |
90% |
22±2 |
260 |
350 |
0.25 |
30 |
400 |
without glue |

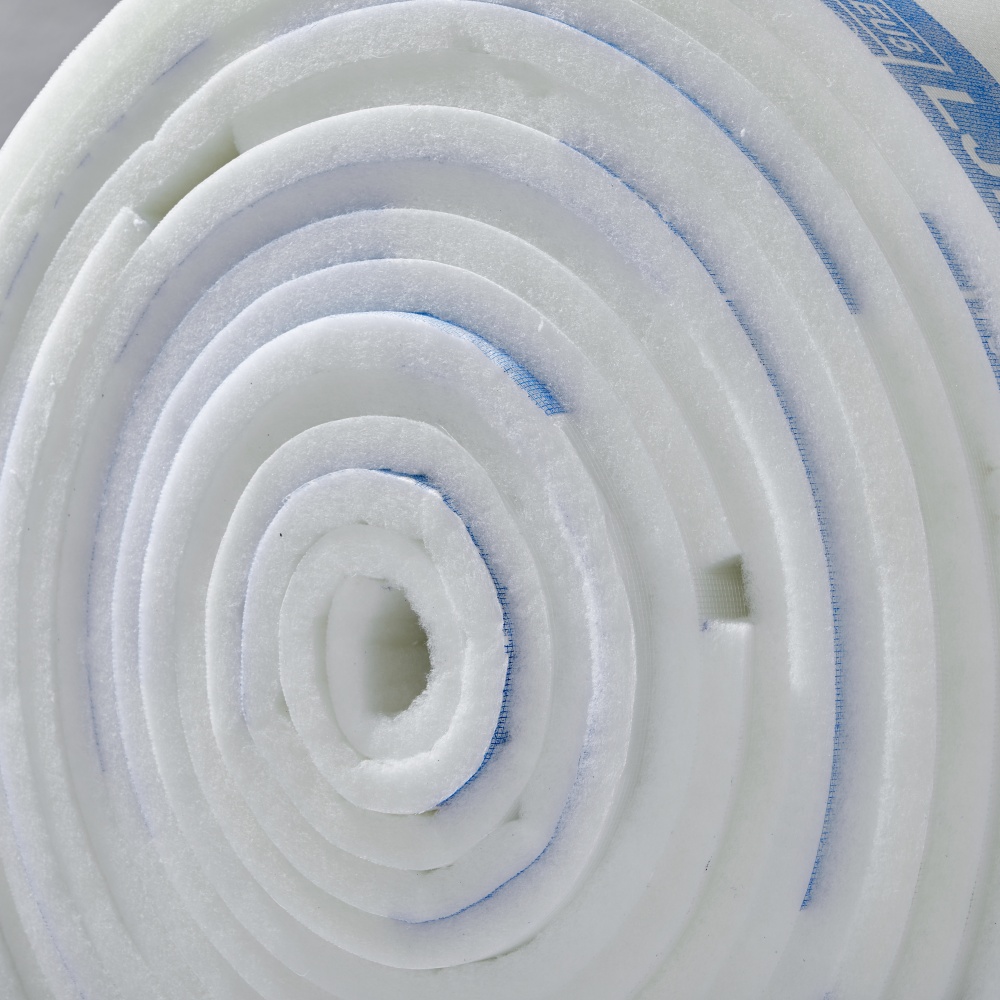

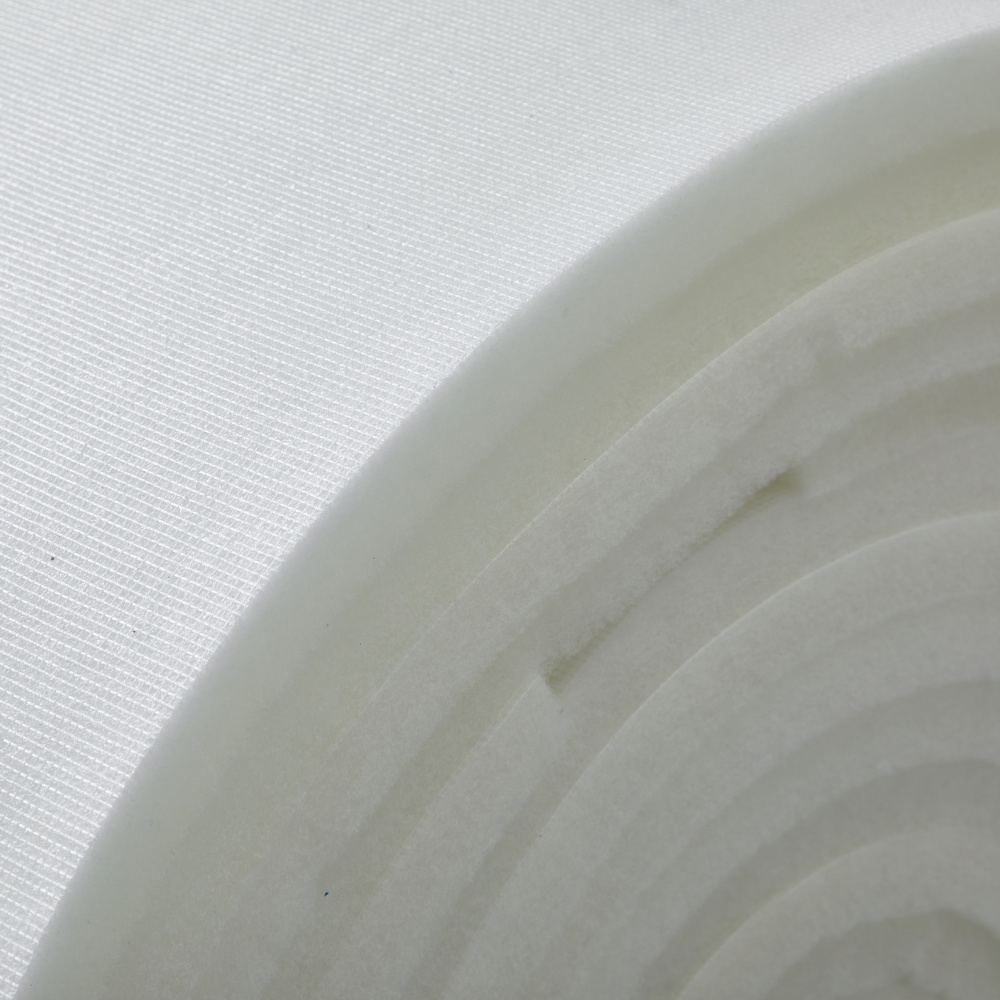

Roll sizes standard: 1*21m 1.6*21m 2*21m | |||||||||
Note: other specifications can be customized according to requirements. | |||||||||
application
• Automotive collision repair centers and body shop paint bays
• Downdraft and semi-downdraft spray booths
• Furniture and wood coating lines
• Industrial coating and powder coating facilities
Maintenance & Service Life
• In typical automotive collision repair centers, check the ceiling media every 300–600 working hours, depending on booth throughput.
• High-capacity facilities should monitor the pressure drop across the ceiling media daily; replace the media when resistance approaches the terminal threshold.
• Proper lifecycle tracking lets workshop managers plan maintenance downtime and avoid unexpected interruptions to painting output.
Product FAQ
-
Q1. Why is the 22 mm thickness ideal for my paint booth ventilation?
-
Q2. How does the 3D resin bonding help in a busy painting bay?
-
Q3. Is this 600G media suitable for high-temperature drying cycles?
-
Q4. Do you offer custom sizing for my spray booth?
-
Q5. Does this filter comply with safety requirements for insurance audits?
Why Choose Guangzhou LJF
• Over 10 years of air filtration manufacturing experience with 3,000+ customers in 30+ countries
• Direct factory pricing — no middleman markup on bulk orders
• Full customization: gram weight, thickness, width, flame-retardant grade, and branding
• Located 10 km from Guangzhou Baiyun Airport for fast global delivery
